Wireless Transmitter And Receiver Module Improved Power Enhancement

Product information :

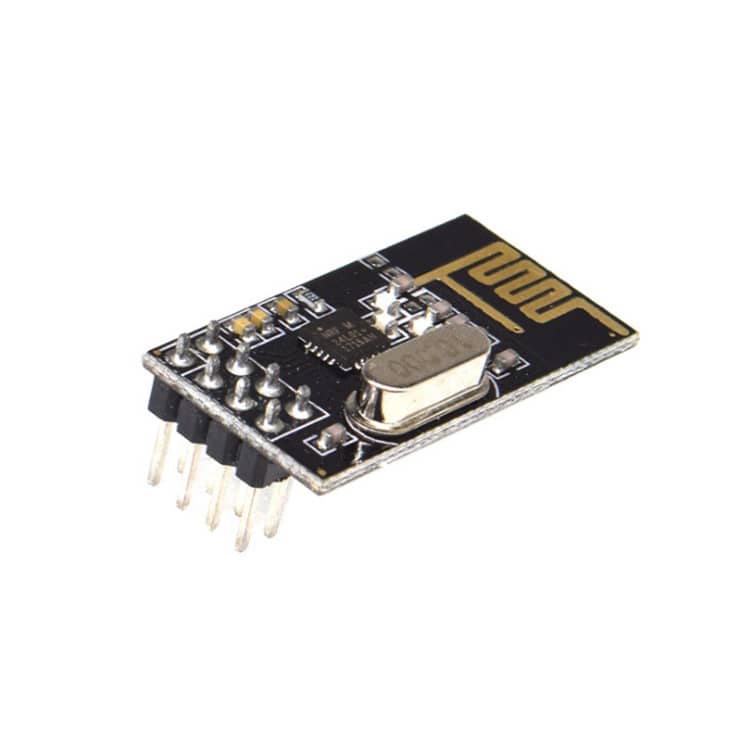

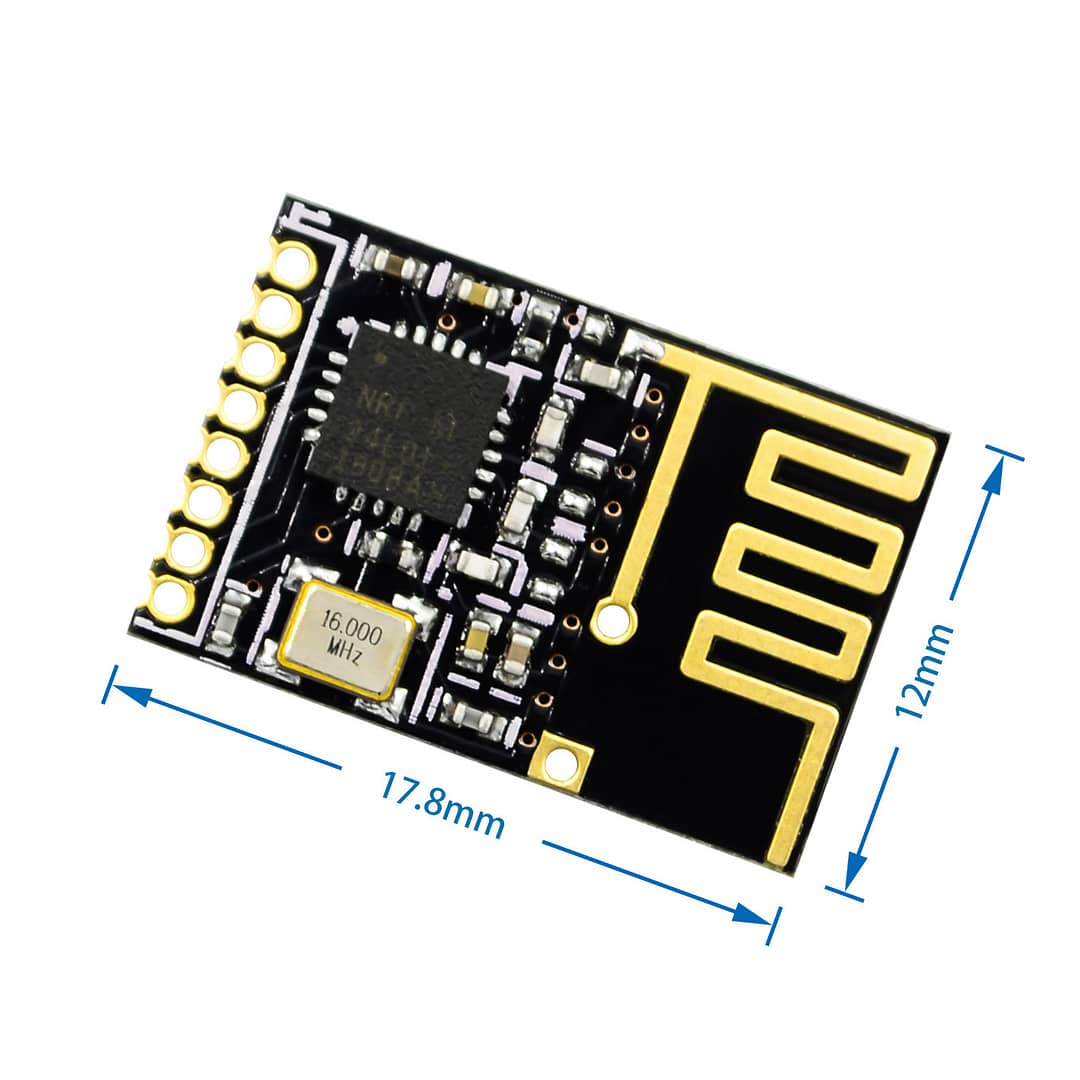

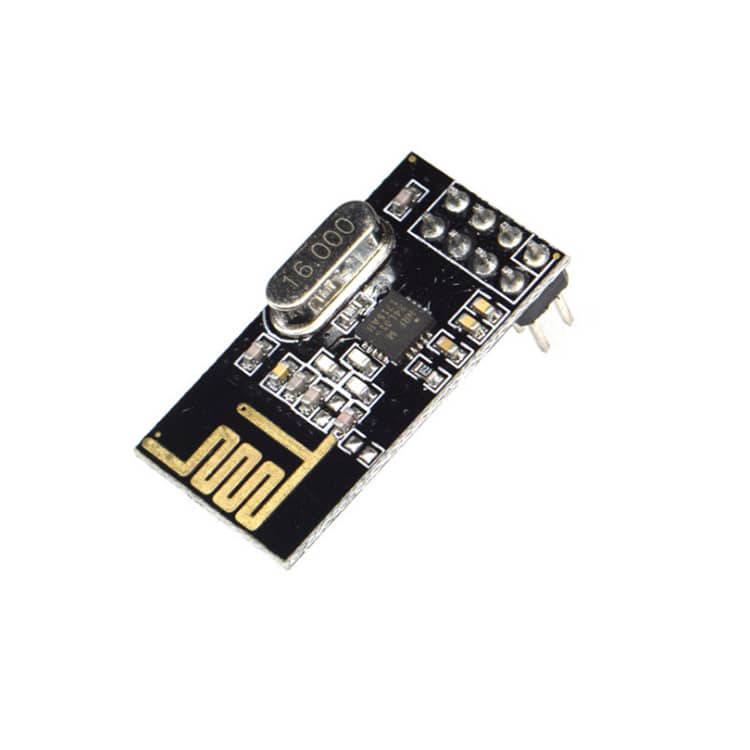

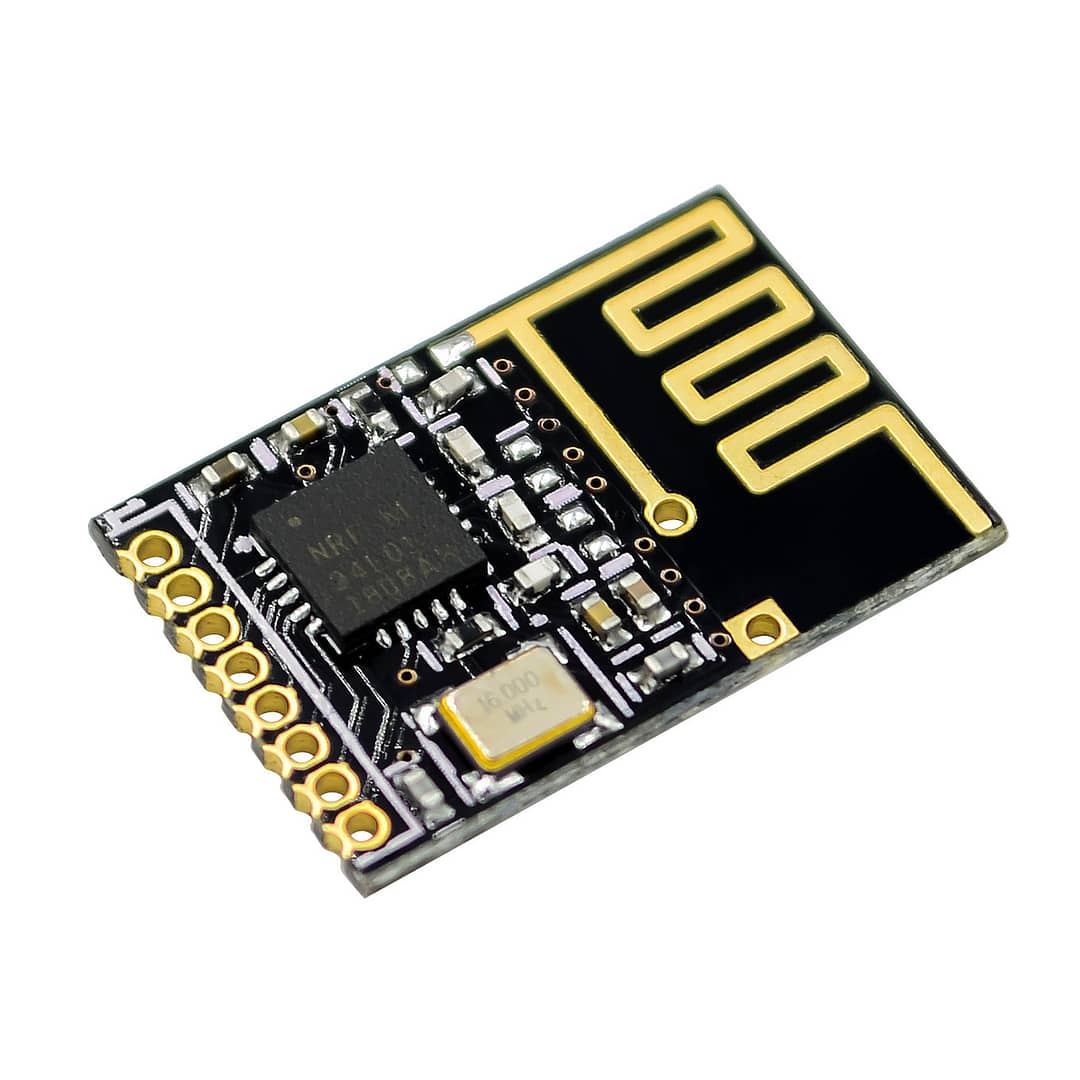

Model: NRF24L01+ Upgraded Version Improved Wireless Module SI24R1 2.4G Wireless Transceiver Module
Type : Other IC
Power : NRF24L01+
Package : Module
Featured Service : NRF24L01+
Product parameters:
On-board 2.4G PCB antenna, ISM frequency band, standard pin DIP 2.54mm pitch interface, small size, convenient for embedded applications.
Support six channels of data reception (one to six)
Support general modulation methods such as GFSK/FSK
Support 2Mbps/1Mbps/250Kbps data rate, different transmit power can be set
Multi-frequency point: 126 frequency points, meet the needs of multi-point communication and frequency hopping communication, 2400MHz~2525MHz, 1MHz frequency hopping step
Internally integrated high PSRR LDO
Wide supply voltage range: 1.9~3.6V, typical 3.3V
Average transmit current as low as 25mA (7dBm)
Receive sensitivity: -96dBm@250kbps
Maximum transmit power: +7±1dBm
Adopt four-wire SPI interface, the speed can reach 10MHz
Internally integrated intelligent ARQ baseband protocol engine
Send and receive data hardware interrupt output
Support 1bit RSSI output
Working temperature: -20℃~85℃
Best transmission distance: less than 240 meters (250kbp open environment without shielding and no electromagnetic interference), the reliable distance is recommended to be used within 30%-50%.

Packing list:

Wireless transceiver module *1
