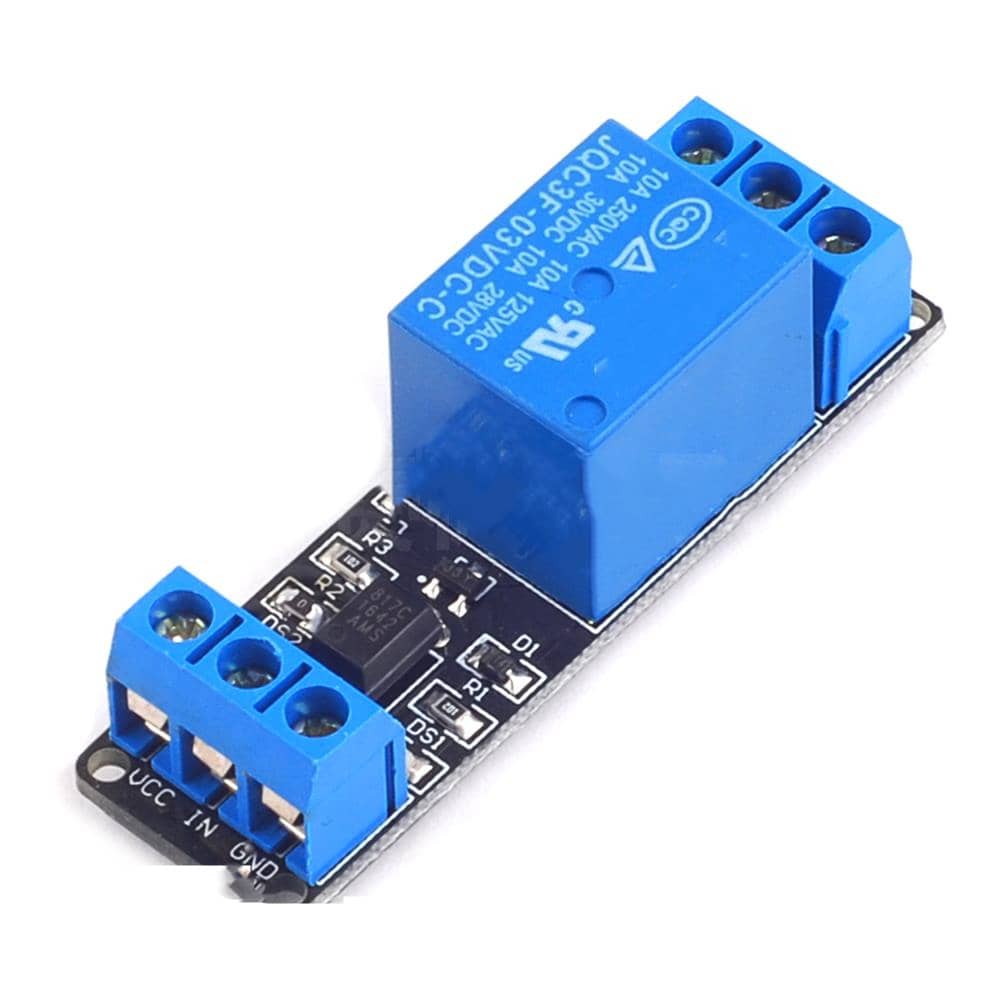

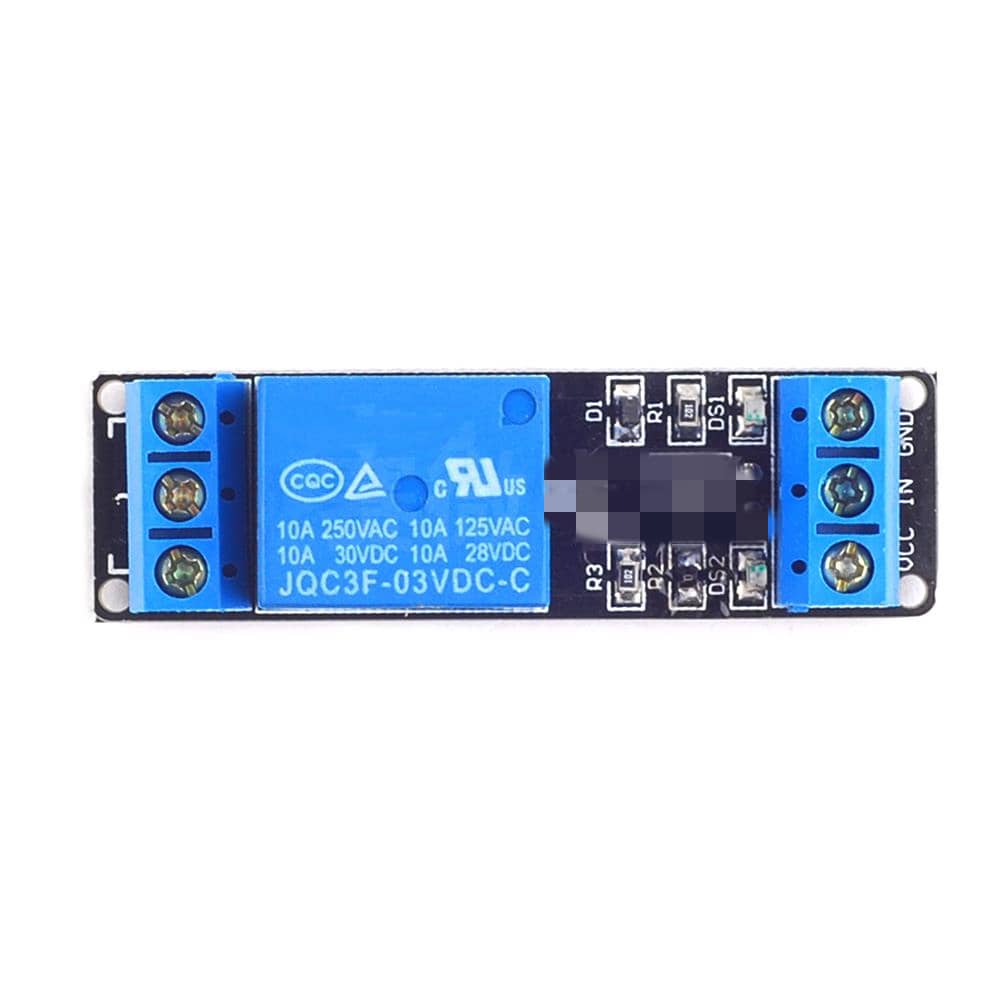

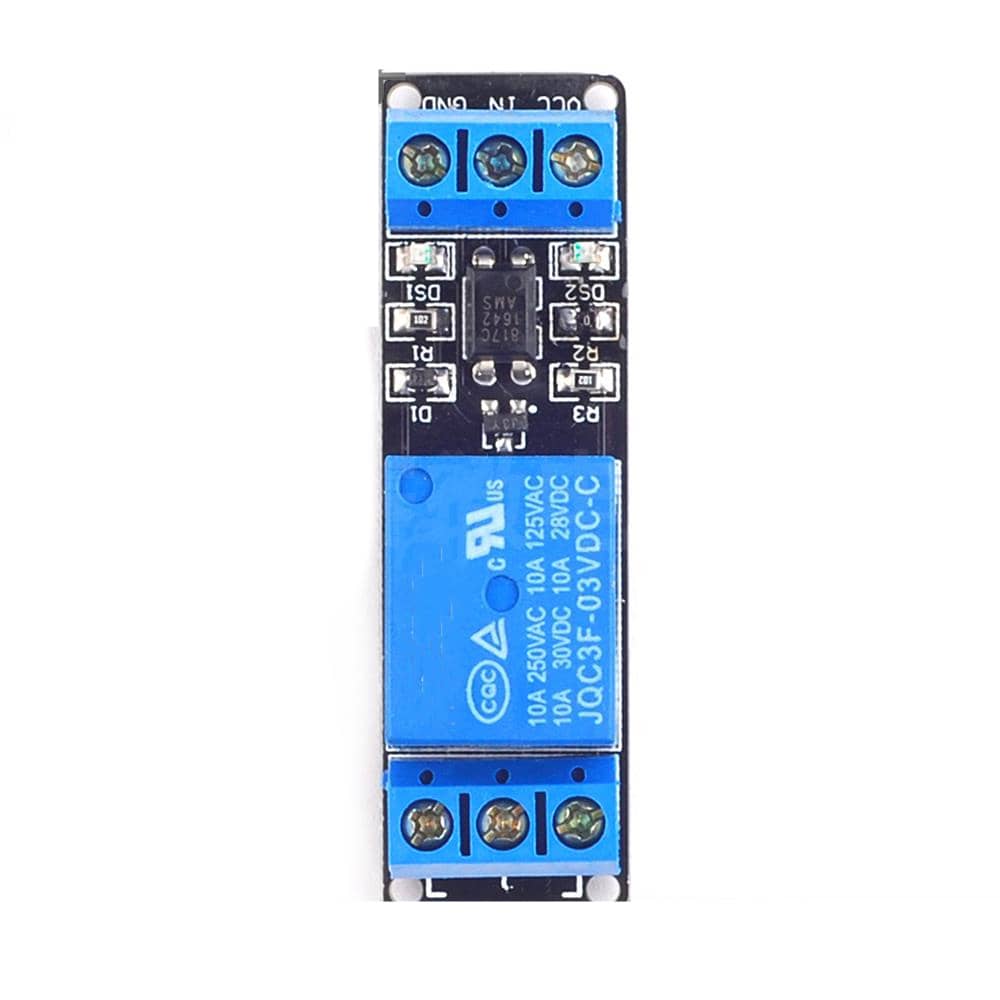

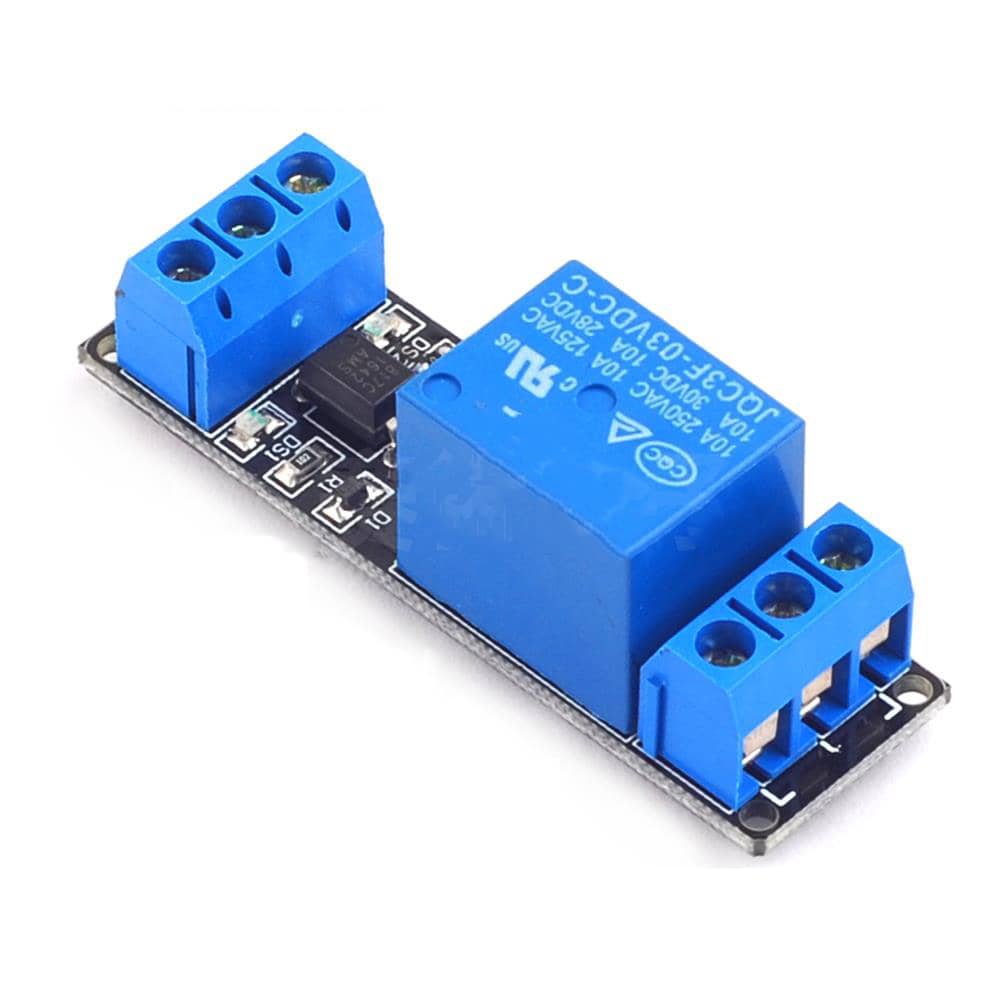

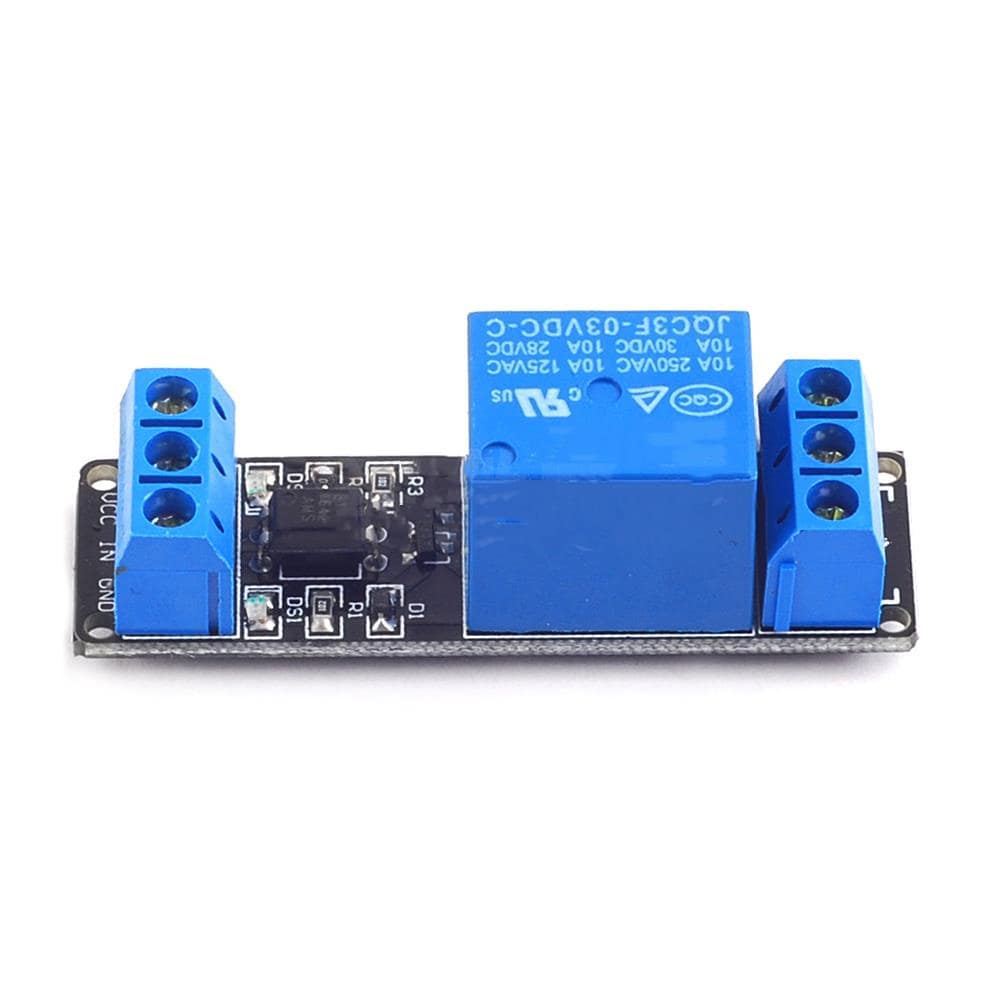

1 Channel 24V Relay Module For Arduino Silk Blue

Product information:

Model: 1 way
Power supply: direct current
Color category: BESTEP
Voltage: ≤36V(inclusive)

Module description:
Module adopts authentic high quality relay, normally open interface maximum load: AC 250V/10A, straight 30V/10A;
Using patch photocoupling isolation, strong driving ability, stable performance; Trigger current 5mA;
Fault tolerant design, even if the control line is broken, the relay will not operate;
Power indicator (green), relay status indicator (red)
Interface design humanized, all interfaces can be directly connected through the wiring terminals, very convenient

Two module interface:
1. VCC: Connect to the positive pole of the power supply (3.3V)
2. GND: Connects to the negative pole of the power supply
3, IN: low level control relay suction

Relay output:
1. NO: normally open interface of relay, suspended before suction of relay, short connected with COM after suction
2, COM: relay public interface
3. NC: normally closed interface of relay, short connect with COM before relay closing, suspended after closing

Packing list:

Relay module *1
