High-power Intelligent Vehicle Motor Driver Module

Product information:
Type: Other modules
Power current: A
Power supply voltage: V
Power: W
Purpose: high-power smart car motor drive
Features: “dual BTS7960 high current (43 A) H-bridge driver;”; 5V is isolated from MCU to effectively protect MCU; On board 5V power indicator; Voltage indication at motor drive output terminal; Weldable radiator;
PIN definition:
1. RPWM: right turn PWM
2. LPWM: Left turn PWM
3. R_ EN: Right turn enable (active at high level)
4. L_ EN: Left turn enable (active at high level)
5. R_ IS: Right turn current warning (may float)
6. L_ IS: Left turn current warning (may float)
7. VCC：（5V）
8. GND

Packing list:

Drive module * 1

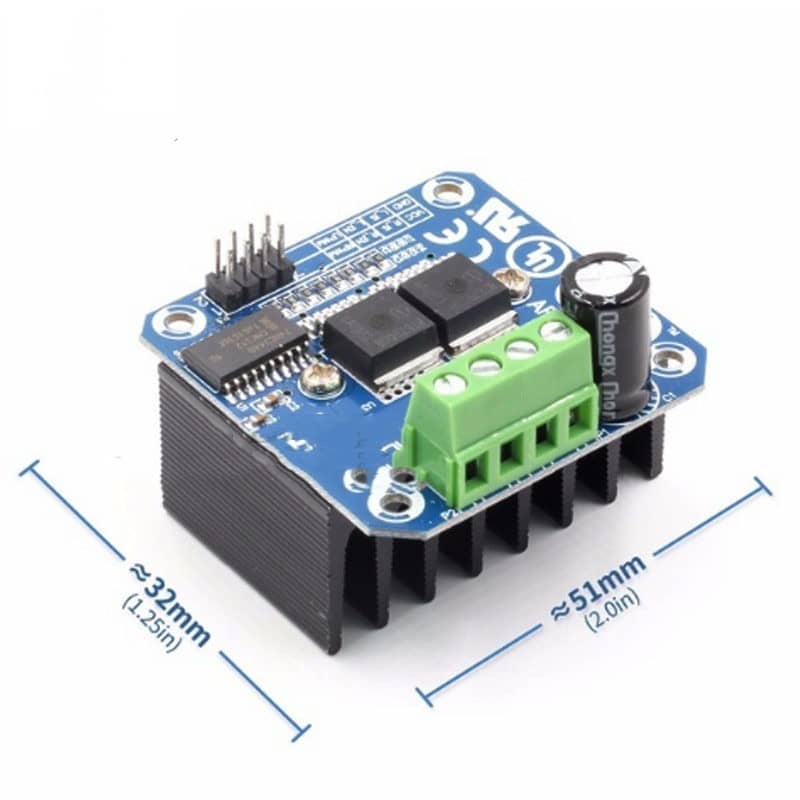

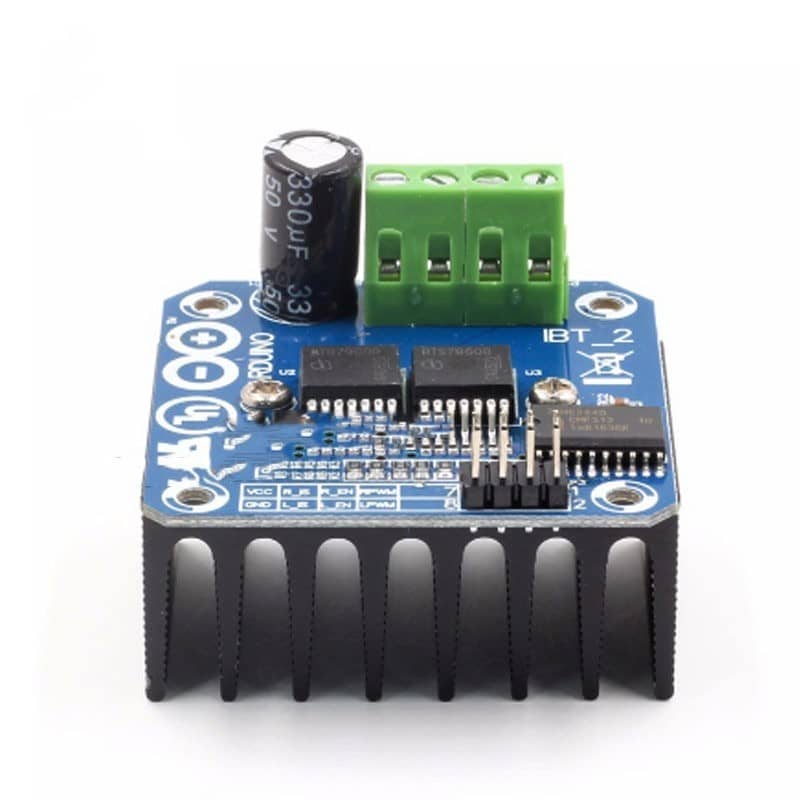

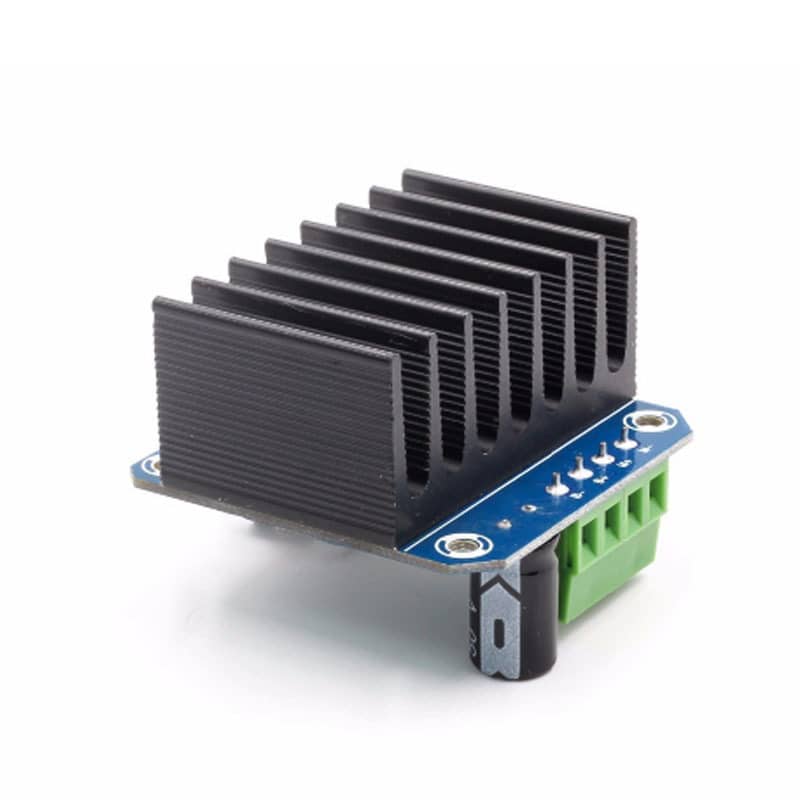

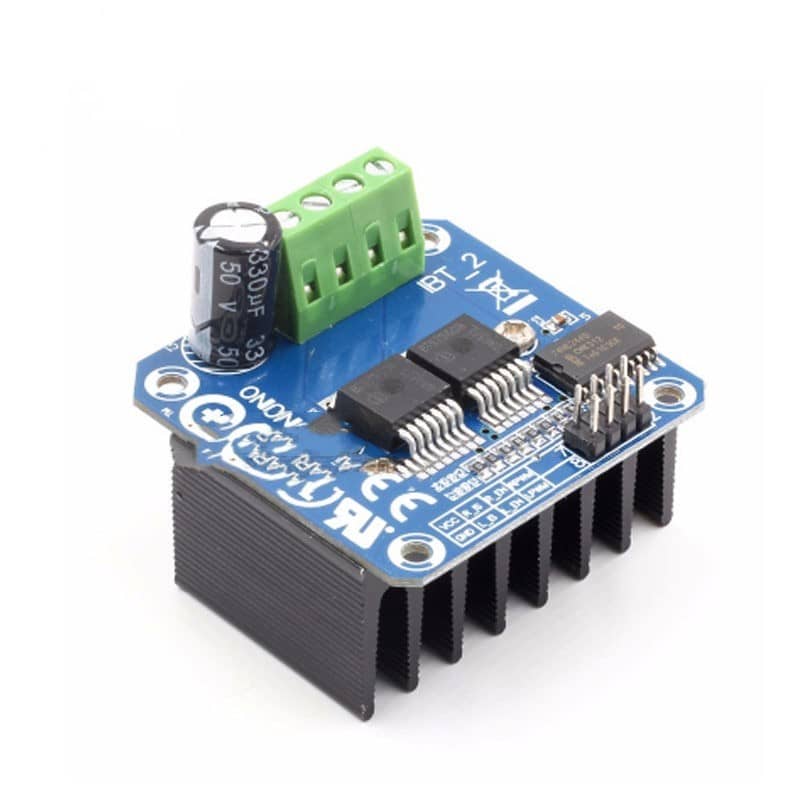

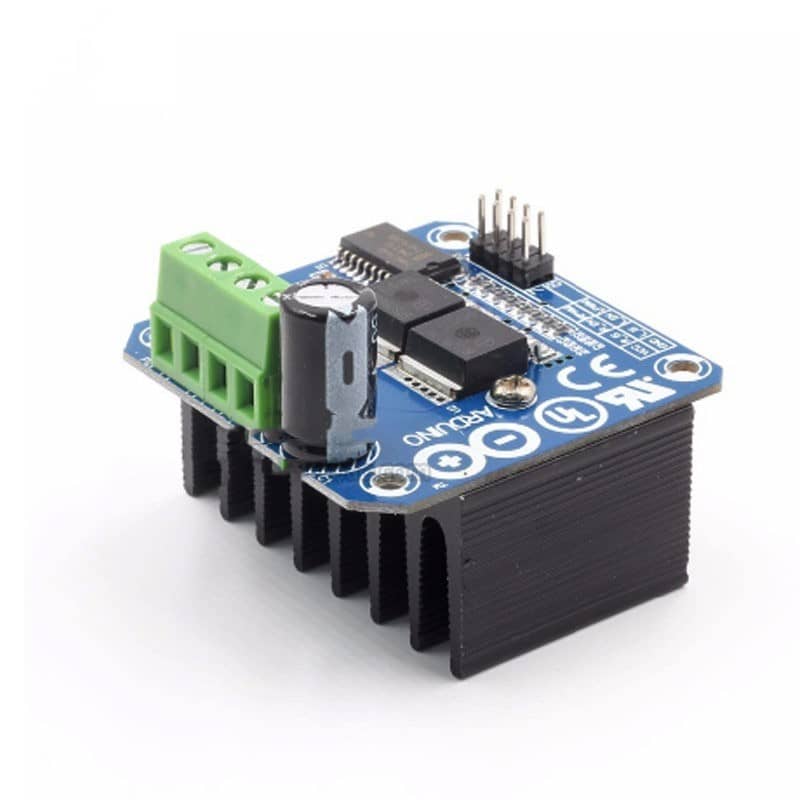

Product Image:
