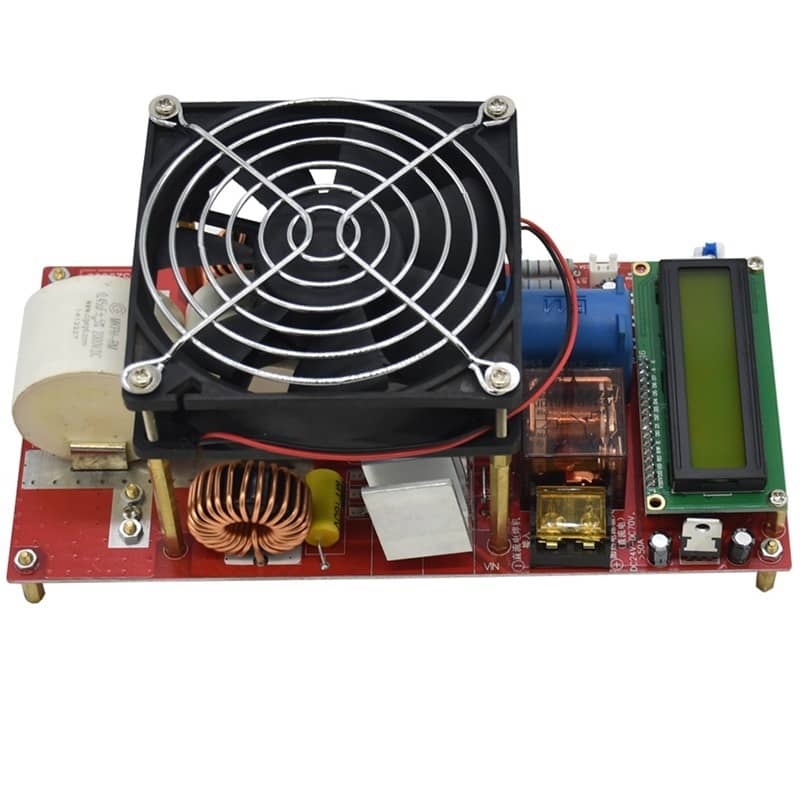

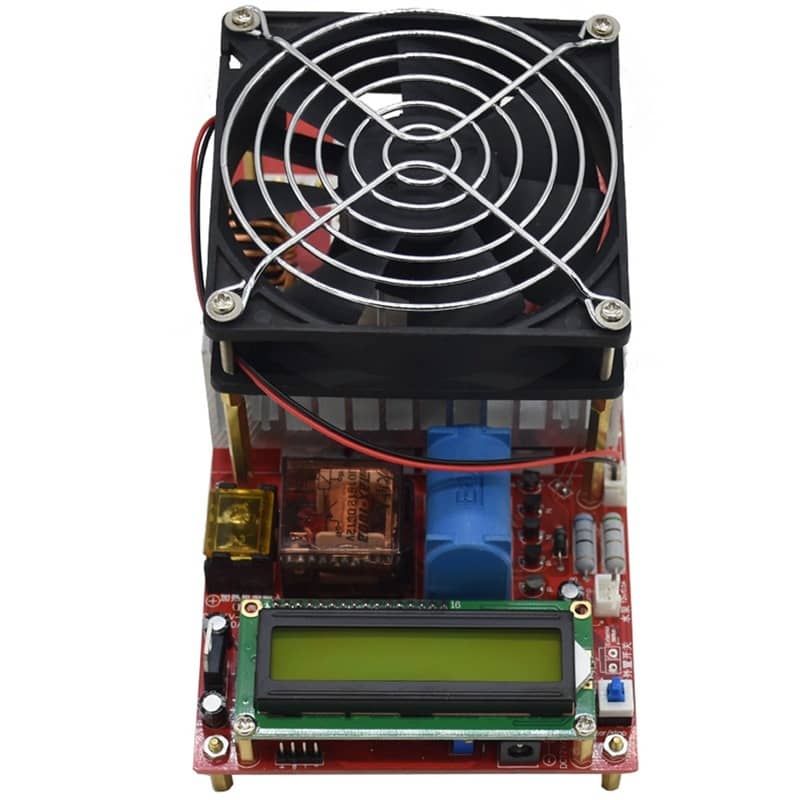

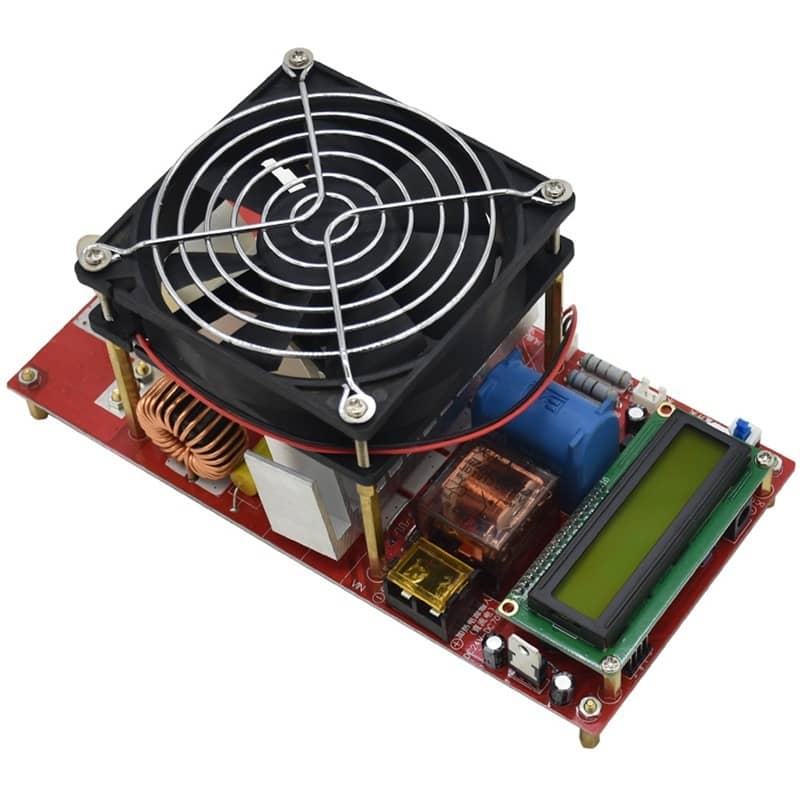

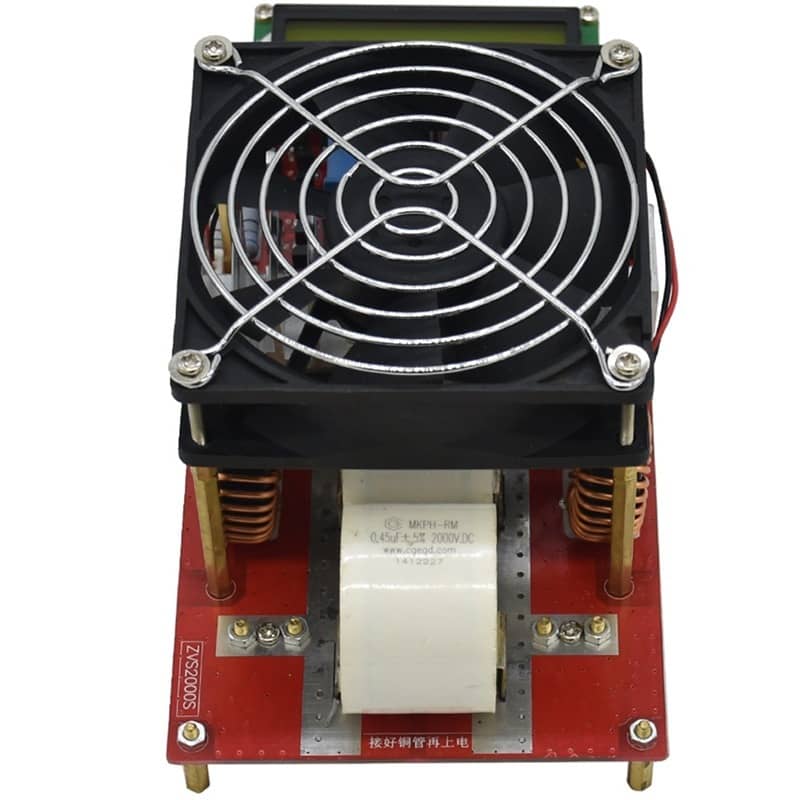

2000W Zvs Induction Heating Module Microcontroller Control Circuit Board

Product information:

Model: 2000W
Single-chip control Input voltage: DC 30V – 60V Input current: 48A(),
Power: 2000 watts.
Short circuit/overload: input current greater than 40A, voltage greater than 55V, entry protection.
Temperature protection: The temperature of the radiator is higher than 65 ℃, and it enters the protection. Return to normal below 65°C
Recommended: 48-53V power supply

Size：305*135*115mm

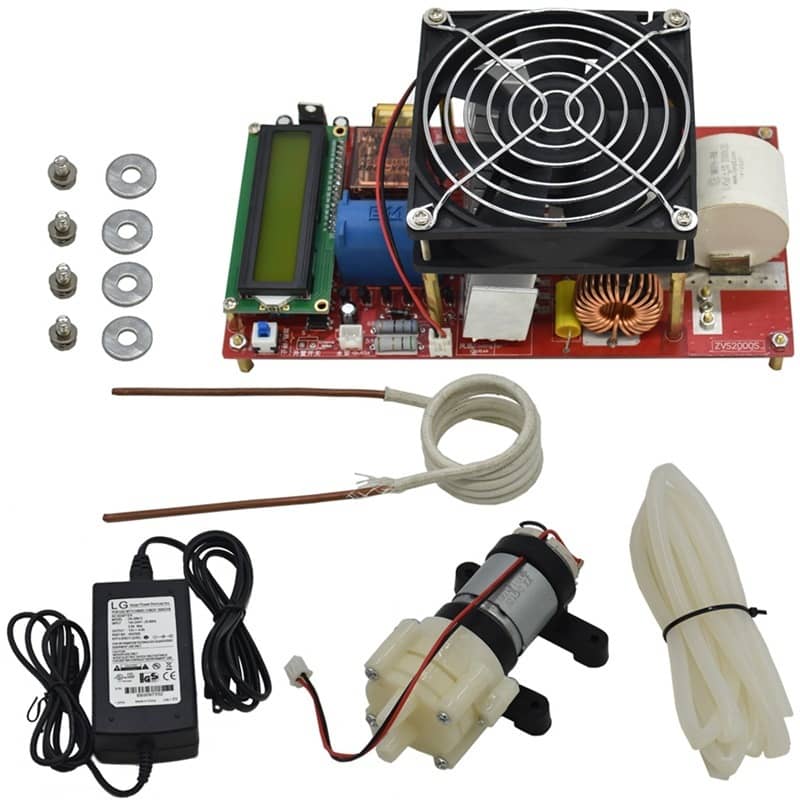

Packing list:

Circuit board*1
